40+ degree reduction in Charge Air Temperature (CAT) observed in real-world conditions (original Titan featuring similar proprietary core composition)
Direct bolt-on replacement - no modifications required other than removal of the AGS (active grille shutters)
Condensation drain on the cold-side end tank allows for seamless draining of built-up fluid
Over 82% greater core volume than OEM intercooler (21" x 9.43" x 5.32")

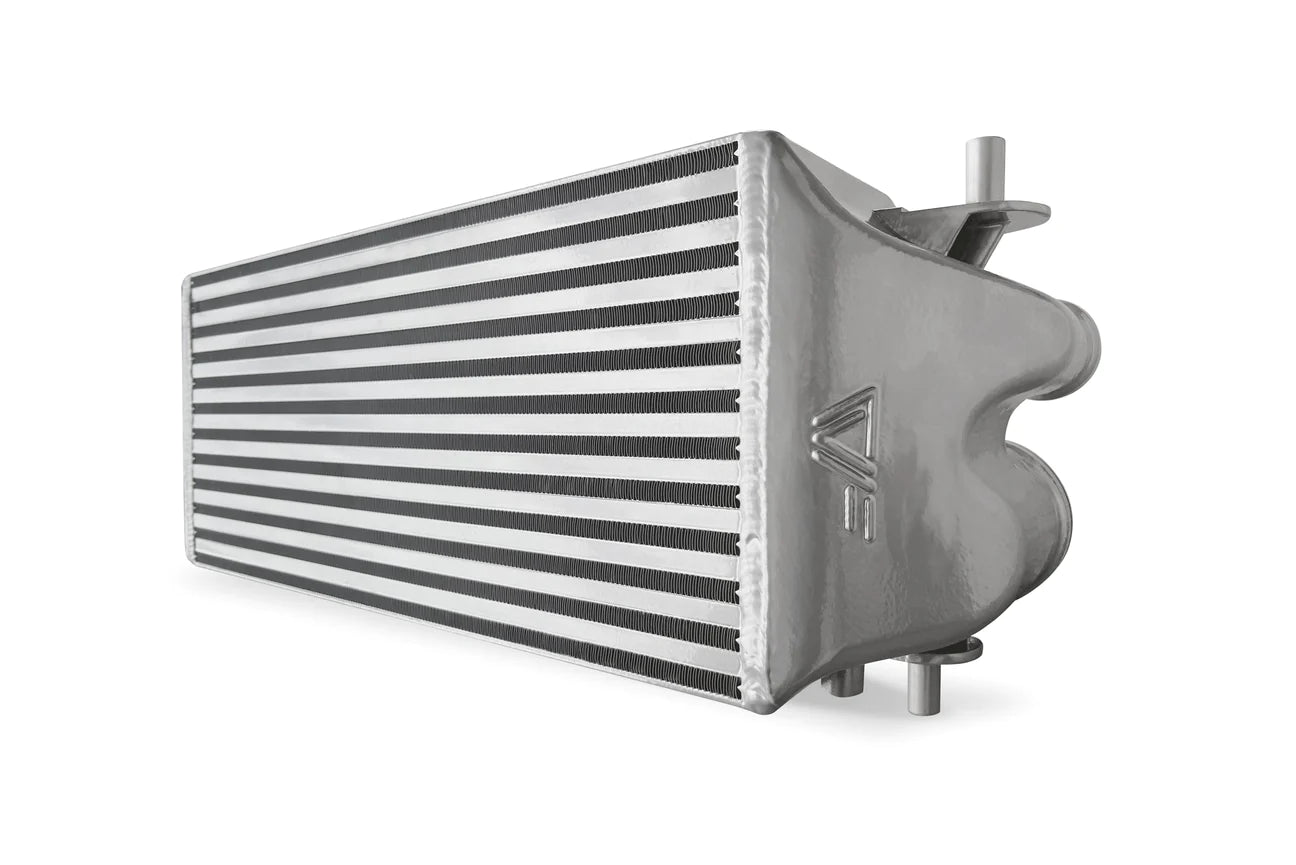

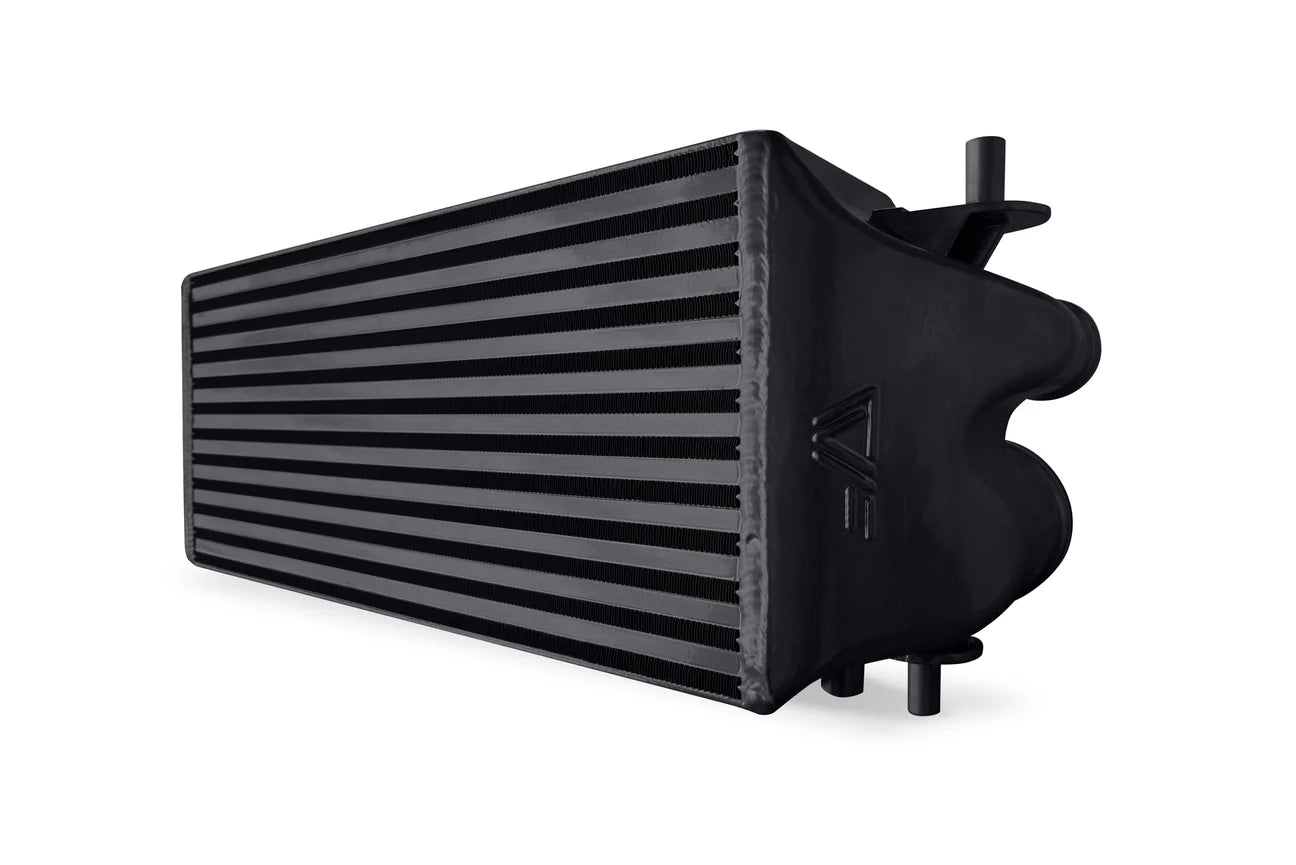

High-flow cast end tanks (featuring the CVF logo) ensure considerably better airflow efficiency than welded aluminum
TIG-welded bar-and-plate construction
CVF Lifetime Warranty

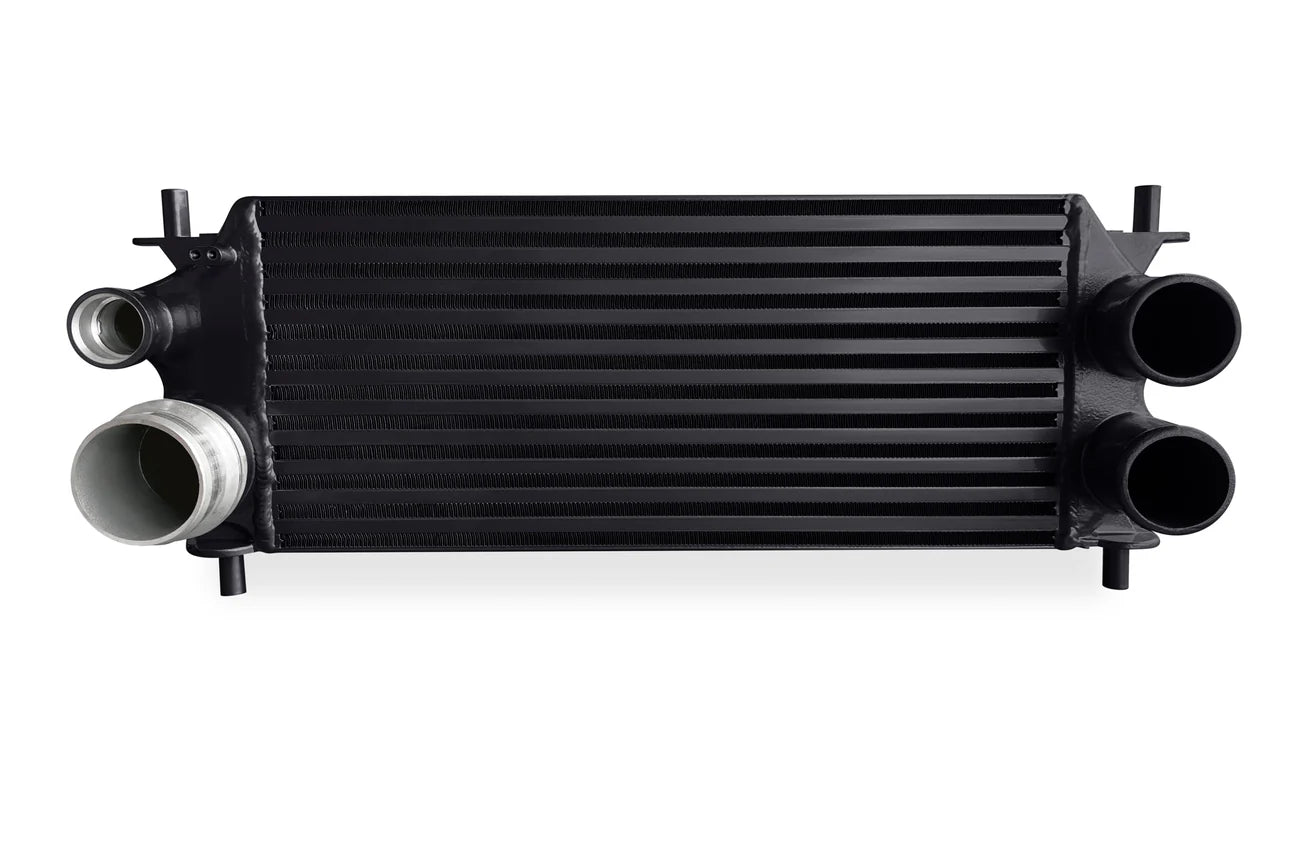

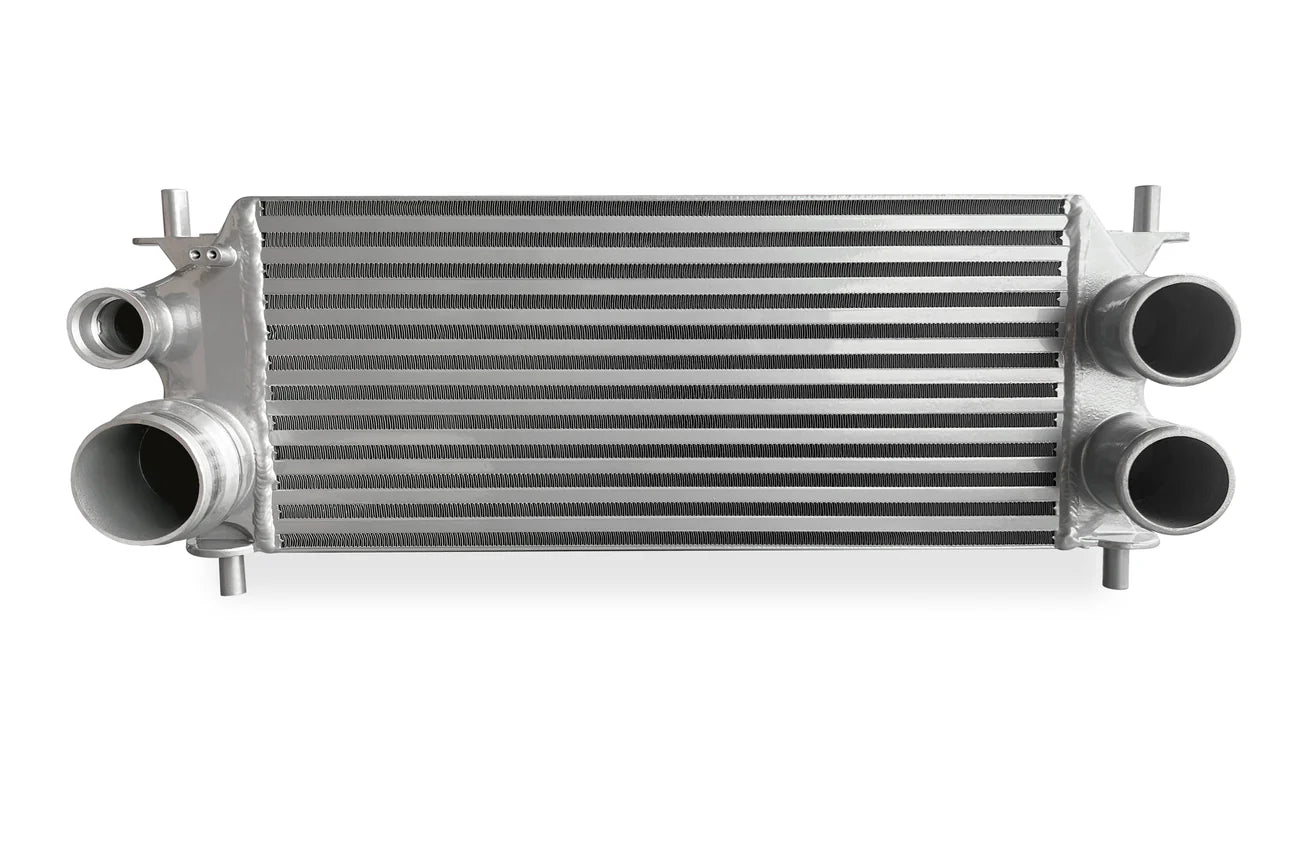

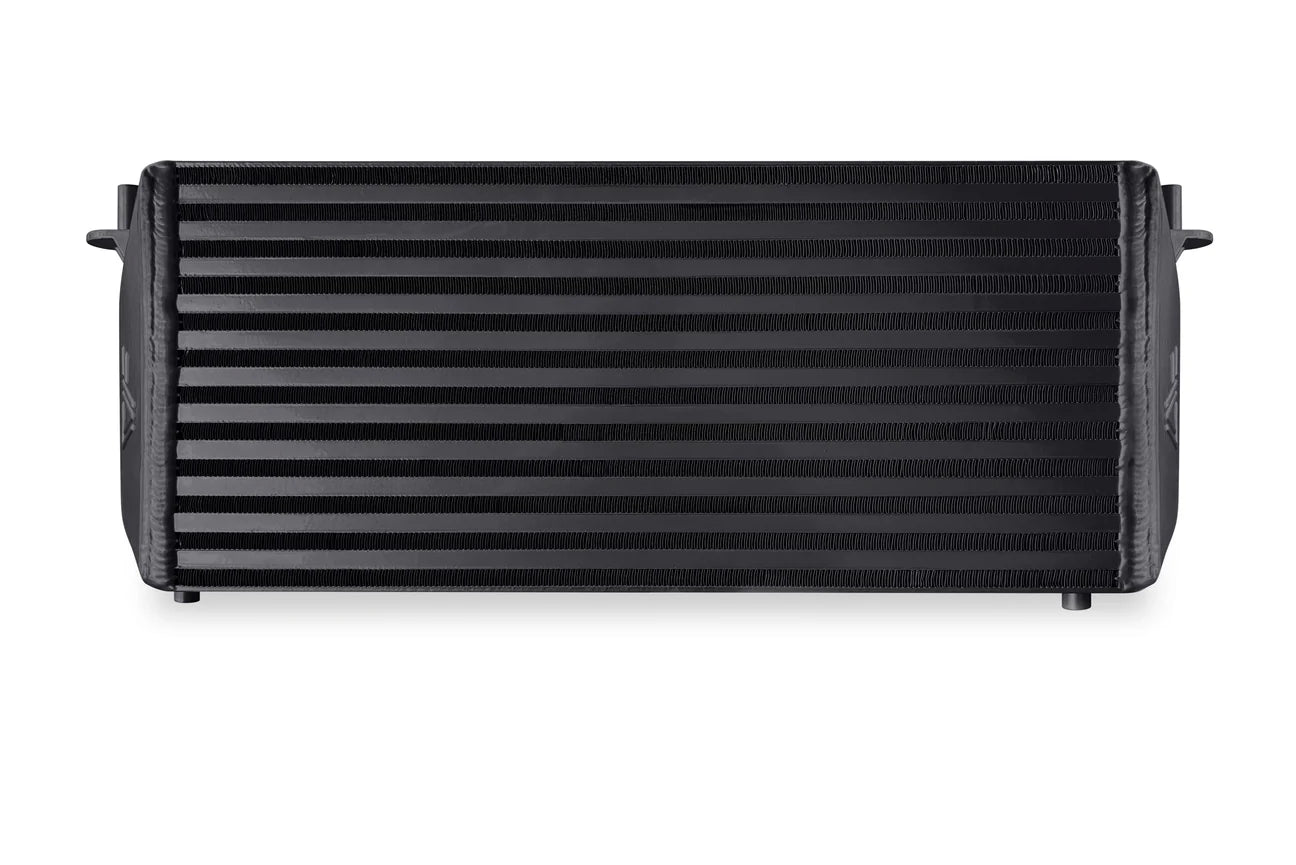

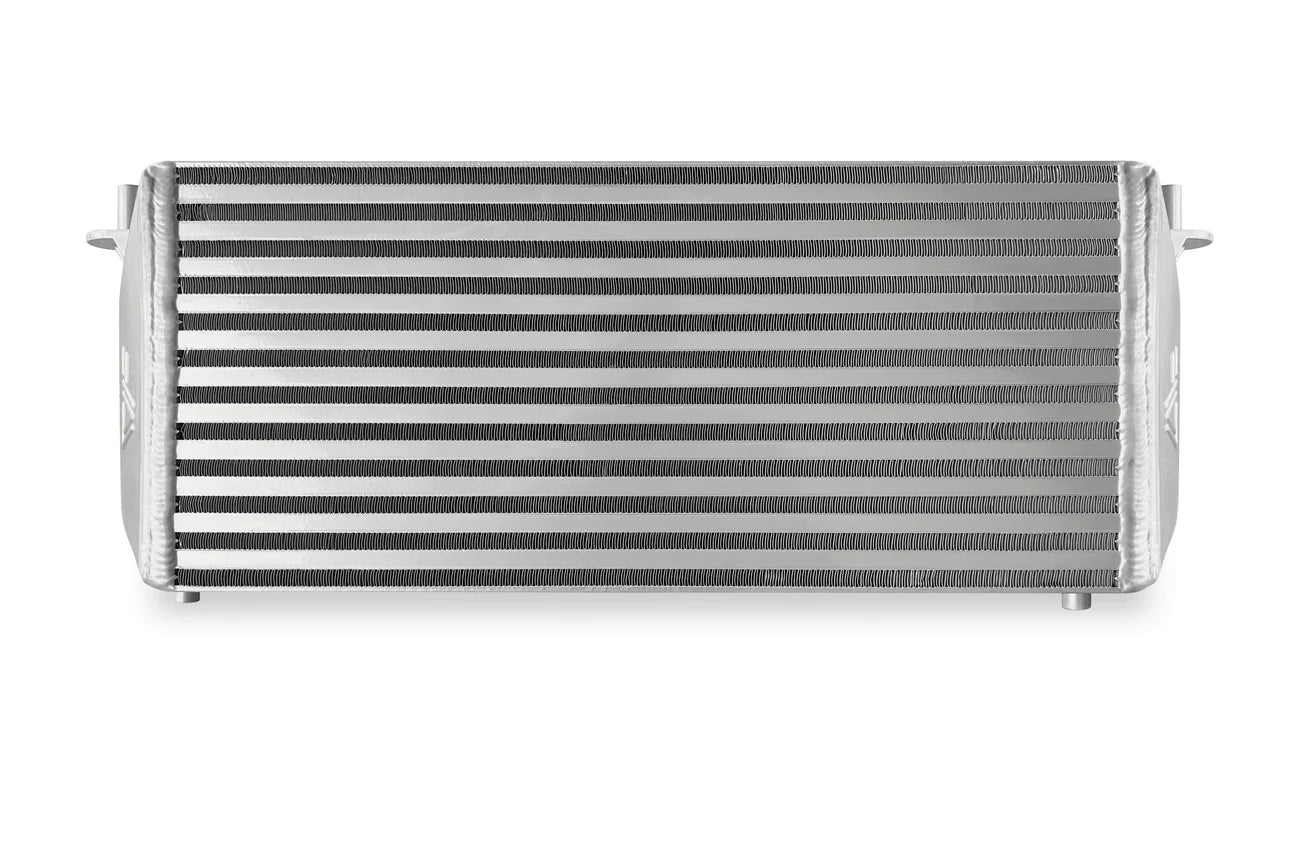

While our original CVF Titan Intercooler is unmatched when it comes to performance for your hard-earned buck, the Titan v2 takes performance a step further by featuring a 27% larger core,eliminating the cold side coupler connection, and introducing a condensation drain on under the cold side end tank. The advanced design not only allows for better cooling than the already exceptional 40+ degree Charge Air Temperature (CAT) reduction proven by the CVF Titan but also seamless installation on 15+ F-150 EcoBoost models.
APPLICATION AND INSTALLATION
The active grille shutters (AGS) have to be removed for installation. There is no check engine light associated with removal of the AGS and they can be placed back on the vehicle if the intercooler is removed.
